功能

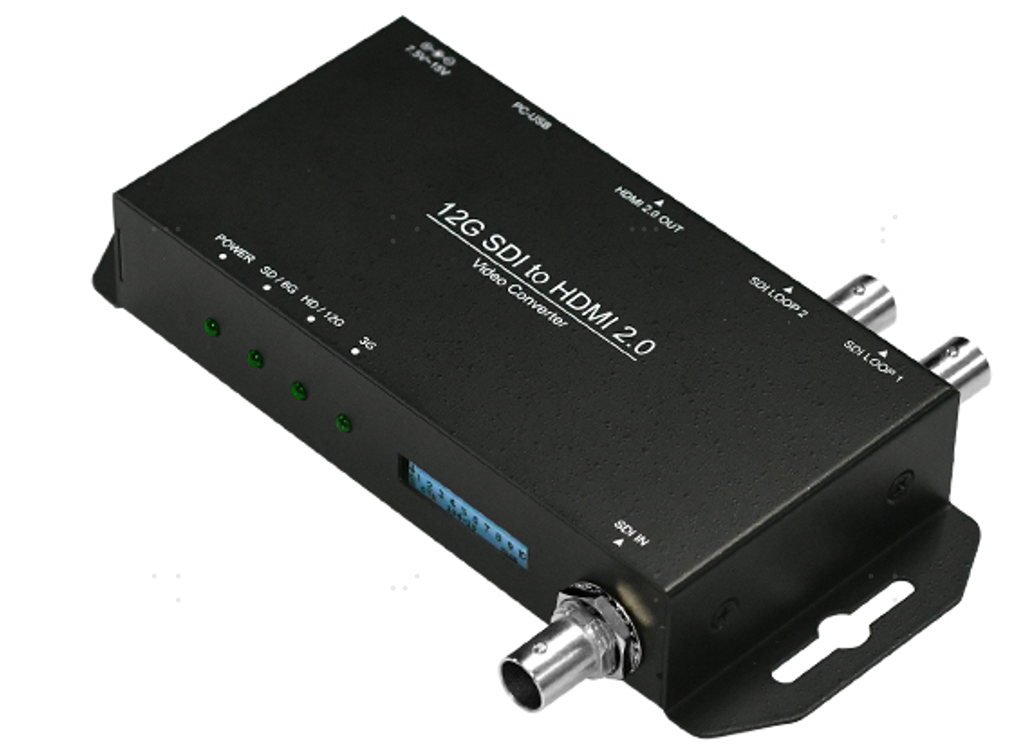

12G-SDI to HDMI 2.0 是一款将12G-SDI信号转换为HDMI2.0接口的转换器，它可以将12G-SDI信号转换为HDMI2.0的输出并带有两路12G-SDI的环出，既可以作为转换器，也可以作为12G-SDI分配器使用。适用于带有12G-SDI接口的内窥镜摄像系统同时连接带有HDMI2.0接口采集卡并环出给内窥镜显示器使用。
参数
| Model | 12G-SDI to HDMI 2.0 |
|---|---|
| Description | 12G-SDI to HDMI 2.0 Converter |
| Feature | Multi-Standard Support ( 12G / 6G / 3G / HD-SDI ) Auto Source Format Detection Power Amplified SDI Loop Out SDI to HDMI Conversion Require 422 10Bit Color Format |
| Input Interface | Video 12G-SDI×1 |
| Output Interface | Converted Video HDMI 2.0×1 12G-SDI×2 |
| Supported Video Input Format | SDI 12G-SDI 4096×2160p@60/50fps 3840×2160p@60/50fps 6G-SDI 4096×2160p@30/25/24fps 3840×2160p@30/25/24fps 3G-SDI 1920×1080p@60/50fps HD-SDI 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps |
| Supported Video Output Format | HDMI : As input SDI format SDI : As input SDI format |
| Audio Input Format | SDI : Up to 8 Channels, 24bit, 48KHz |
| Audio Output Format | HDMI : Up to 8 Channels, 24bit, 48KHz SDI : Up to 8 Channels, 24bit, 48KHz |
| Plug & Play | V |
| DC In | 7.5V ~ 15V |
